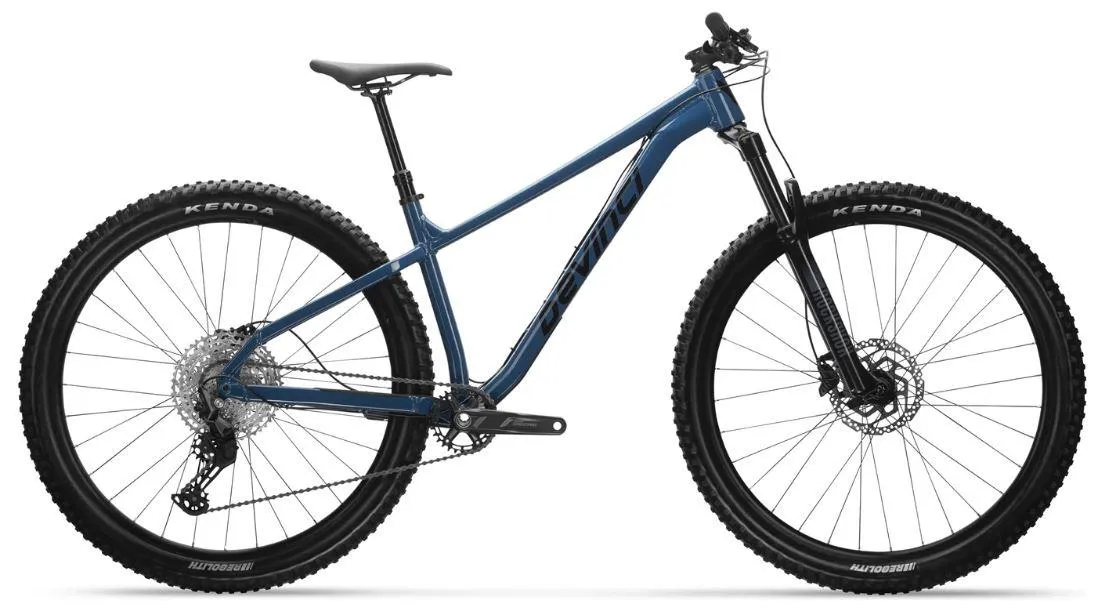

Kobain is a rock-solid, made-in-Canada hardtail, built to get you riding more trails, more often. Its modern geometry puts you in a powerful, confident riding position, so you can focus on what’s ahead, while the 29-inch wheels with generous clearance and thru-axles front and rear keep things solid on the trail. The Kobain is all about fun at a fair price. In other words, that means more time riding and less time working.



Frame

FRAME:  Aluminum Optimum G04

HEADSET:  FSA Orbit | 1.5E | Zero Stack

SEAT CLAMP:  Alloy CNC | 34.9mm

Suspension

SUSPENSION FORK:  Rockshox 35 Silver R Coil 130 | 51 Offset

Cockpit

HANDLEBAR:  V2 Pro | B:35mm | R:15mm | W:780mm

STEM:  V2 Pro | B:35mm | L:50mm | 0°

SADDLE:  Devinci

SEATPOST:  TranzX Dropper | 31.6mm | 1x Lever

GRIPS:  Devinci Performance | w/lock-on

Brakes

FRONT BRAKE:  Shimano MT200 | 2 Pistons

REAR BRAKE:  Shimano MT200 | 2 Pistons

ROTORS:  Shimano RT26 | 180mm

Drivetrain

REAR DERAILLEUR:  Shimano Deore M5100 | 11s

REAR SHIFTER:  Shimano Deore M5100 | 11s

CRANKSET:  Shimano Deore M5100 | 30T

BOTTOM BRACKET:  Shimano BB52 | BSA | 68/73mm

CASSETTE:  Shimano M5100 | 11s | 11-51T | SH

CHAIN:  Shimano HG601 | 11s

Wheels

FRONT RIM:  V2 Comp | 29mm inner | TR

FRONT HUB:  Formula DC-711 | Sealed | 6bolts | TA 15x110mm

REAR RIM:  V2 Comp | 29mm inner | TR

REAR HUB:  Formula DC-3248 | Sealed | 6bolts |TA 12x148mm | SH

SPOKES:  Sapim Stainless 14G w/Nylok

TIRES:  Kenda Regolith | 29x2.6

Accessories

PEDALS:  Wellgo w/CRMO spindle

Weight

14.90 kg / 32.85 lb
*For a size medium complete bike, weight approximate and subject to change.

Geometry:

	S	M	L	XL
A - ST (MM)	390	420	445	490
B - SA (DEG)	75.0	75.0	75.0	75.0
C - HA (DEG)	65.5	65.5	65.5	65.5
D - TT (MM)	586	614	641	674
E - REACH (MM)	420	445	470	500
F - CS (MM)	435	435	435	435
G - WB (MM)	1162	1191	1220	1255
H - BBH (MM)	319	319	319	319
I - SOH (MM)	723	723	738	768
J - STACK (MM)	620	629	638	648
K - HT (MM)	95	105	115	125
RIDER HEIGHT (CM)	160-170	169-179	178-188	187-198
