Product Details
＋
Free nationwide delivery - In stock and available!

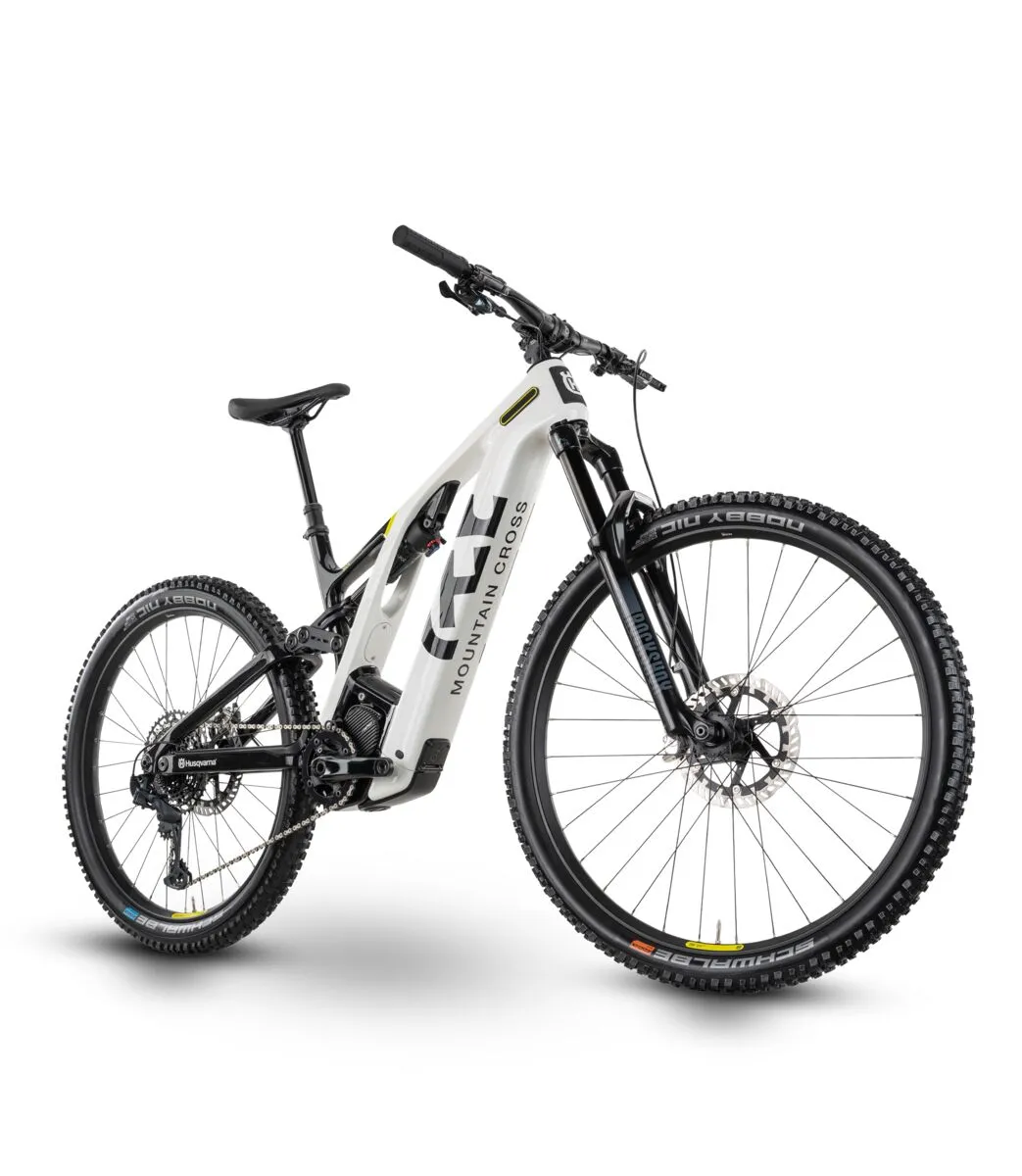

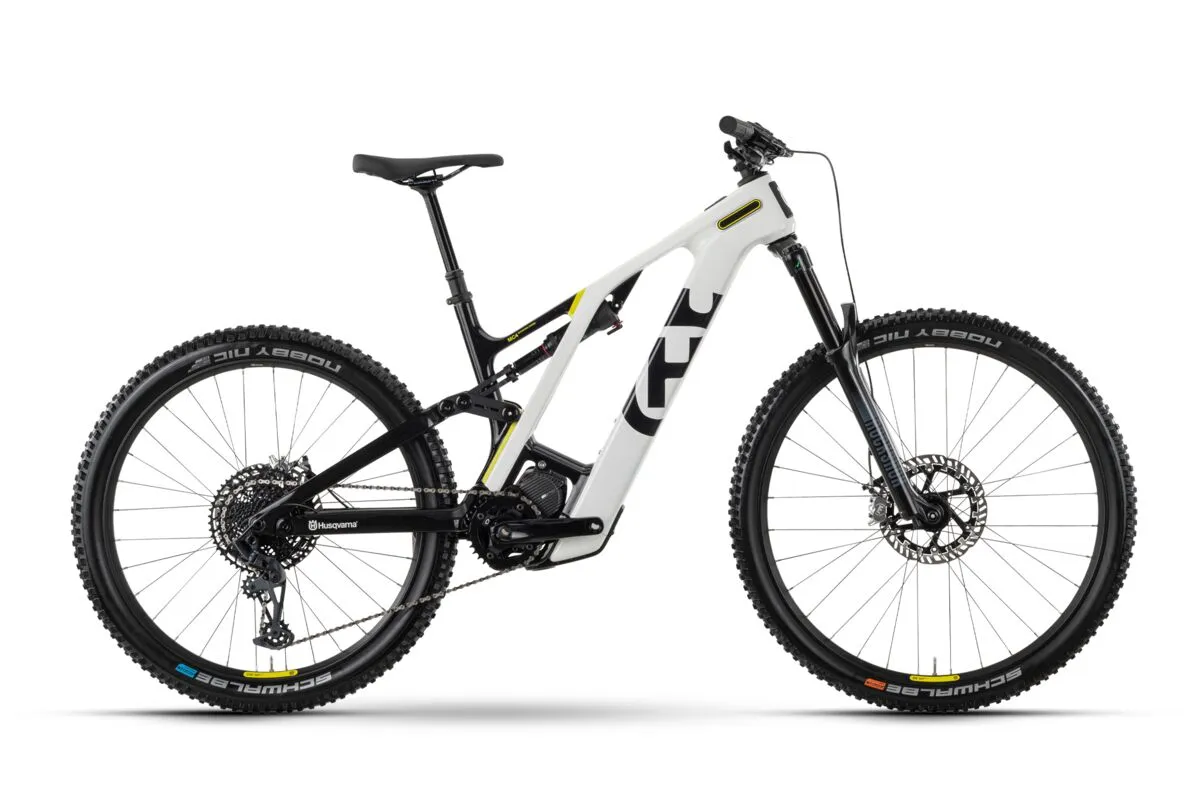

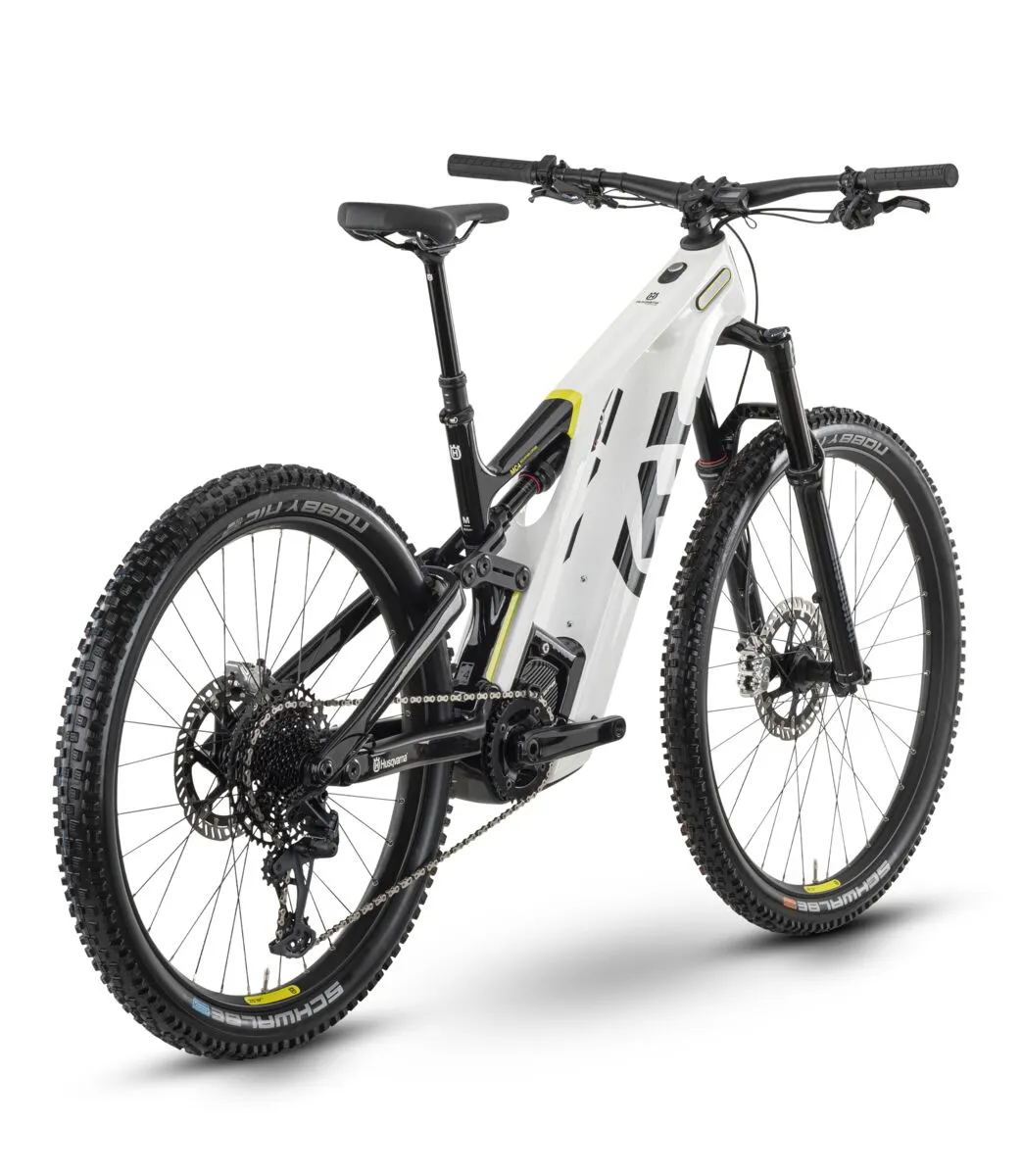

Mountain Cross 4
Specification
| WHEEL SIZE | 27.5“/584mm, 29"/622mm. SMALL: 27.5“/584mm |
| FORK | RockShox 35 Gold RL, DebonAir, Air, 150 mm, tapered |
| SHOCK | RockShox Deluxe Select , Air, 230x62.5 mm |
| MOTOR | Shimano EP8, DU-EP800, 250 W, 85 Nm |
| BATTERY | Core S3 , 720 Wh, 36 V |
-
GEAR SHIFT LEVER: SRAM GX Eagle, Single Click
- REAR DERAILLEUR: SRAM GX Eagle, 12-S
- CASSETTE: SRAM PG-1230, 11-50 T
- CHAIN: SRAM GX Eagle
- CHAIN RING: SRAM X-Sync Eagle, 34 T
- CRANK ARM: Shimano FC-EM900, Aluminium forged, Shimano EP24
- PEDALS: Husqvarna, aluminium
- FRONT BRAKE: SRAM DB8, 4-piston, Hydraulic disc brake
- REAR BRAKE: SRAM DB8, 4-piston, Hydraulic disc brake
- STEM: Husqvarna 35, 0 °, Ahead
- HANDLEBAR: Husqvarna Riser 35 mm, 780 mm, Sweep: 8 °, Rise: 20 mm
- GRIPS: Husqvarna MTB, Lock-on grips
- SEAT POST: Husqvarna Pro, 31.6 mm, Dropper post
- SADDLE: Husqvarna MTB
- TYRES: Schwalbe Nobby Nic, Evolution, 62-622, 29x2.4. SMALL: Schwalbe Nobby Nic, Evolution, 65-584, 27.5x2.6. REAR: Schwalbe Nobby Nic, Evolution, 65-584, 27.5x2.6, Tubeless ready
- FRAME COLOR: white
- CHARGER: Charger S, 4 A
- PERMISSIBLE TOTAL VEHICLE WEIGHT: 130kg
Geared with top notch features and enhanced with improved dynamics; a result of newly perfected geometry and seating position - The MC4 elevates the E-MTB experience like never before, from scaling up mountains to conquering ridges.
GEOMETRIES
| SIZE | S | M | L | XL |
| A - Top Tube Length | 567mm | 596mm | 626mm | 655mm |
| B - Seat Tube Length | 410mm | 435mm | 460mm | 485mm |
| C - Seat Tube Angle | 77.1° | 77° | 76.9° | 76.8° |
| D - Head Tube Length | 130mm | 115mm | 130mm | 145mm |
| E - Steering Angle | 65.5° | 65.5° | 65.5° | 65.5° |
| F - Chain Stay Length | 445mm | 445mm | 445mm | 445mm |
| G - Wheel Base | 1184mm | 1216mm | 1247mm | 1279mm |
| I - BB-Drop | 18mm | 18mm | 18mm | 18mm |
| K - Stack | 619mm | 633mm | 646mm | 660mm |
| L - Reach | 425mm | 450mm | 475mm | 500mm |
