Product Details
＋
Overview

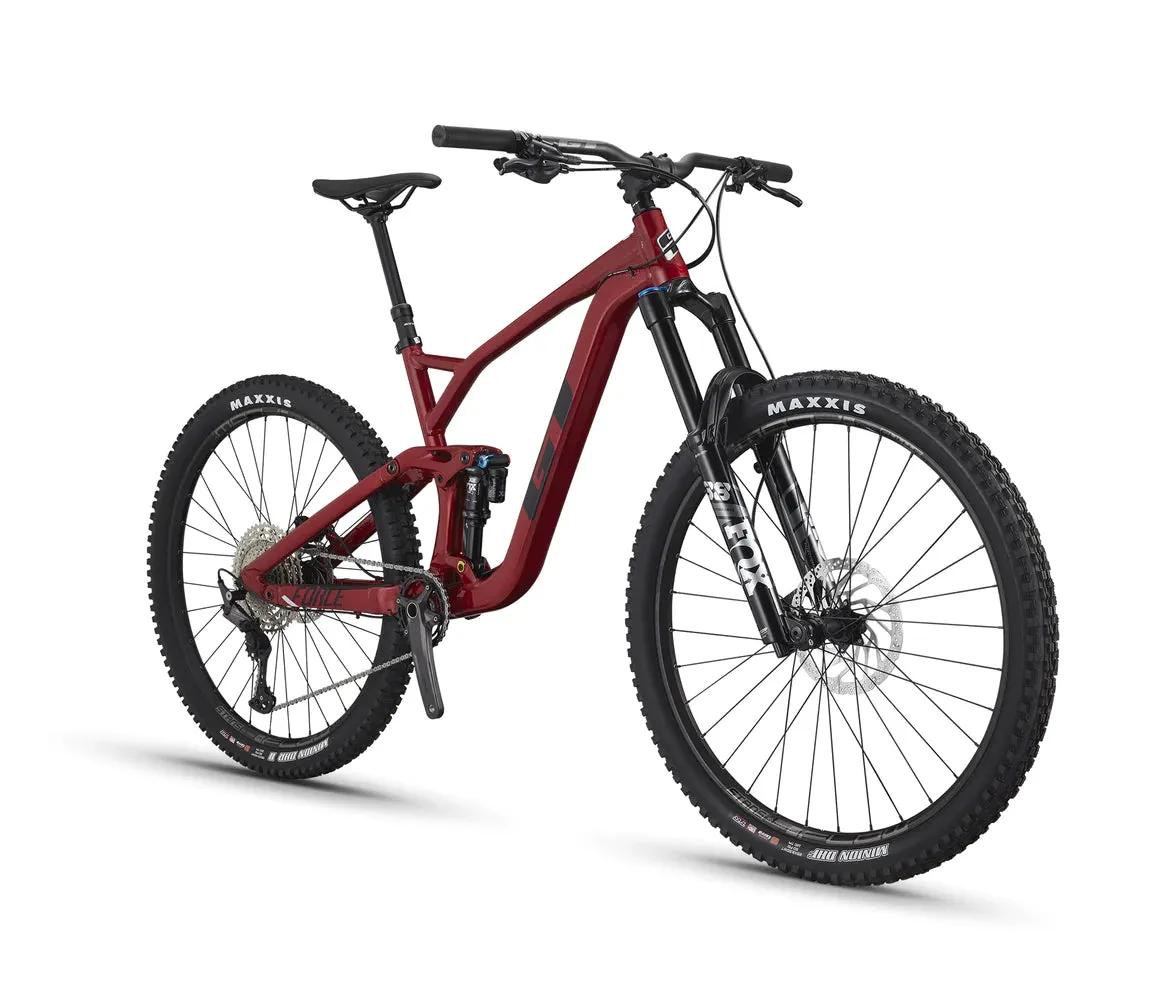

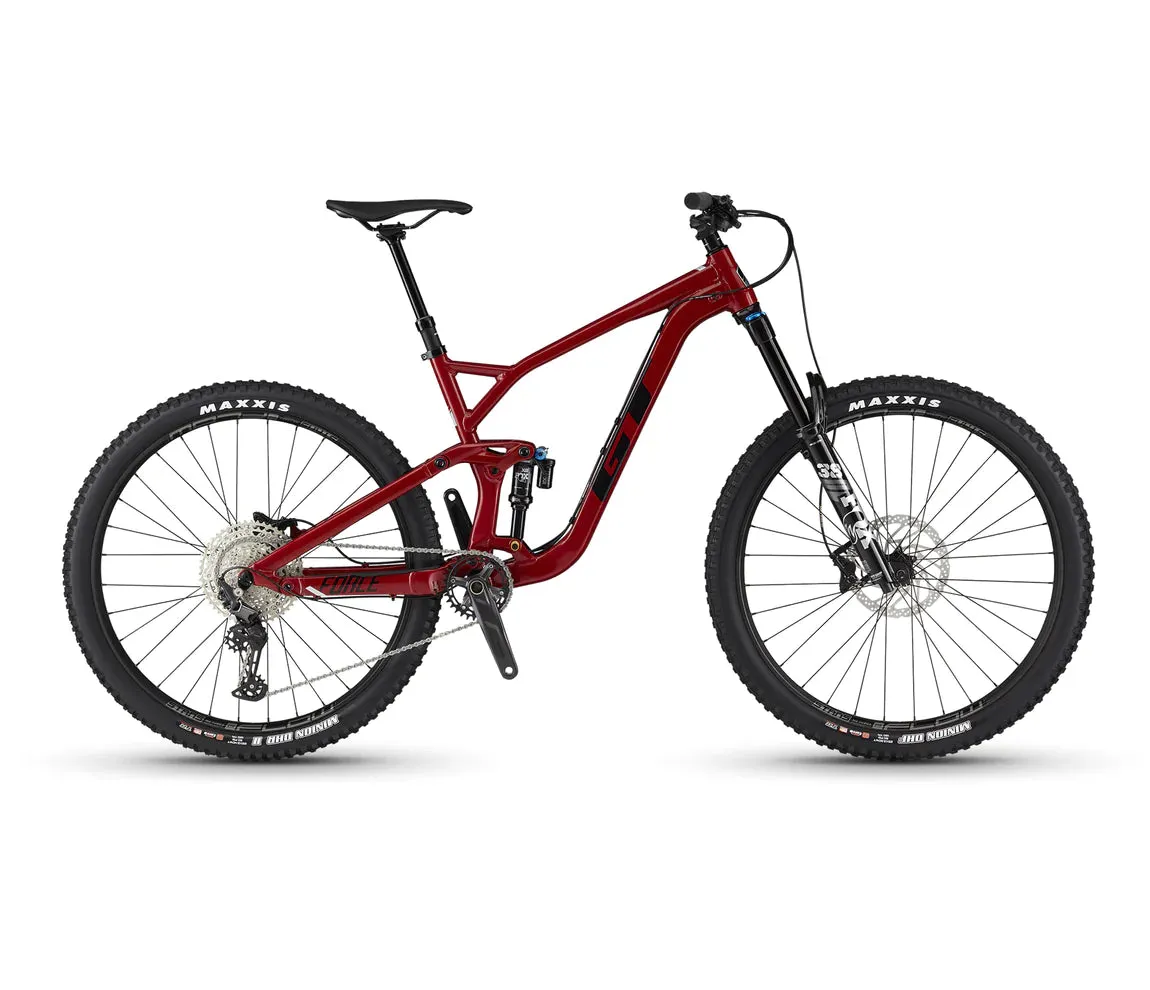

Developed for riders that seek out big hits and a lot of gravity. The all-new Force is built for the fun of it.
Frame
Frame - Force Alloy 29" Frame, 150mm travel, 12x148mm Thru-Axle
Sizes - availableSM, MD, LG, XL
Fork - Fox Float Performance 38, 170mm, GRIP 2, 44mm Offset
Rear Shock - Fox Float X Performance, 2-Pos Adjust, 185x55mm Trunnion
Wheel Size - 29
Wheels
Rims - Stan's NoTubes Flow S2, 32h, Tubeless Ready
Front Hub - Shimano MT400B, 15x110mm, Centerlock
Rear Hub - Shimano MT410B, 12x148mm, Centerlock
Front Tire - Maxxis Minion DHF, 29x2.5", 3C MaxxTerra, EXO
Rear Tire - Maxxis Minion DHR II, 29x2.5", 3C MaxxTerra, EXO
Drivetrain
Rear Derailleur - Shimano Deore M6100
Shifters - Shimano Deore M6100, 12-Speed
Cassette - Shimano Deore M6100, 10-51T
Chain - Shimano M6100, 12-Speed
Crank - Shimano FC-MT511, 32T
Bottom Bracket - Shimano BSA, 73mm
Cockpit
Handlebar - GT Alloy Riser Bar, 30mm Rise, 780mm, 5° Up, 8° Back
Stem - GT Alloy, 45mm
Grips - GT Mushroom
Headset - FSA No.42
Seatpost - GT DropKick, 31.6mm, (S - 125mm, M - 150mm, L/XL - 170mm)
Saddle - GT Scoop Shallow Sport
Brakes
Brakes - Shimano MT420, 203/180mm Rotors
LTS Suspension
Linkage Tuned Suspension provides a consistent and efficient suspension platform. The 4-bar system is designed to be a highly tunable suspension platform that maintains ground hugging traction even under heavy braking.
Alloy frame
Strong and reliable, Force’s alloy frame gives riders a dependable chassis at an affordable price that’s ready for anything.
| Sizes (mm) | SM | MD | LG | XL |
|---|---|---|---|---|
| Seat tube length | 420 | 440 | 460 | 480 |
| Seat tube angle effective | 76.5 ° | 76.6 ° | 76.6 ° | 76.6 ° |
| Top tube horizontal | 567 | 594 | 621 | 647 |
| Top tube actual | 523 | 549 | 575 | 602 |
| Head tube angle | 64.5 ° | 64.6 ° | 64.6 ° | 64.6 ° |
| Standover | 736 | 756 | 775 | 795 |
| Head tube length | 102 | 110 | 118 | 126 |
| Wheelbase | 1198 | 1226 | 1254 | 1283 |
| Front center | 757 | 785 | 814 | 842 |
| Chainstay length | 442 | 442 | 442 | 442 |
| Bottom bracket drop | 27 | 27 | 27 | 27 |
| Bottom bracket height | 349 | 349 | 349 | 349 |
| Fork rake | 51 | 51 | 51 | 51 |
| Trail | 122 | 122 | 122 | 122 |
| Stack | 615 | 622 | 629 | 636 |
| Reach | 420 | 445 | 470 | 495 |
| Travel front | 170 | 170 | 170 | 170 |
| Travel rear | 150 | 150 | 150 | 150 |
